Waterfall Repair Services in California
Most waterfall repair calls in California come down to one of five problems: mortar joint failure, liner damage, pump failure, plumbing leaks, or structural settling from soil movement. Koi Pros diagnoses and repairs pond waterfalls, pondless waterfalls, pool-integrated waterfalls, and commercial water features across California, with primary service coverage in Orange County and secondary coverage in Los Angeles County, Riverside County, San Diego County, and the Inland Empire.
A waterfall that loses water slowly through a hairline mortar crack requires a different repair approach than one that stopped flowing because of a seized pump or a collapsed plumbing line. Leaks, pump failures, mortar deterioration, structural settling, and flow loss all have different root causes, and each one calls for a different diagnostic sequence and repair method.
Every waterfall repair engagement begins with an on-site assessment. We measure water loss rates, test pump performance, inspect structural joints, and evaluate the plumbing system before recommending any work. The assessment determines whether the waterfall needs a targeted repair, a component replacement, or a full system rebuild.
Koi Pros holds a C-53 Swimming Pool Contractor license issued by the California Contractors State License Board and has been repairing and building pond and water feature systems for more than 40 years. All repair work includes manufacturer and labor warranties.
- We assess your pond’s condition, system design, and location before recommending any next steps.
Common Waterfall Failures and What Causes Them
Waterfall failures fall into six categories. Each one has a different cause, progresses differently, and requires a different repair approach. Identifying the correct failure type is the first step in scoping any repair.

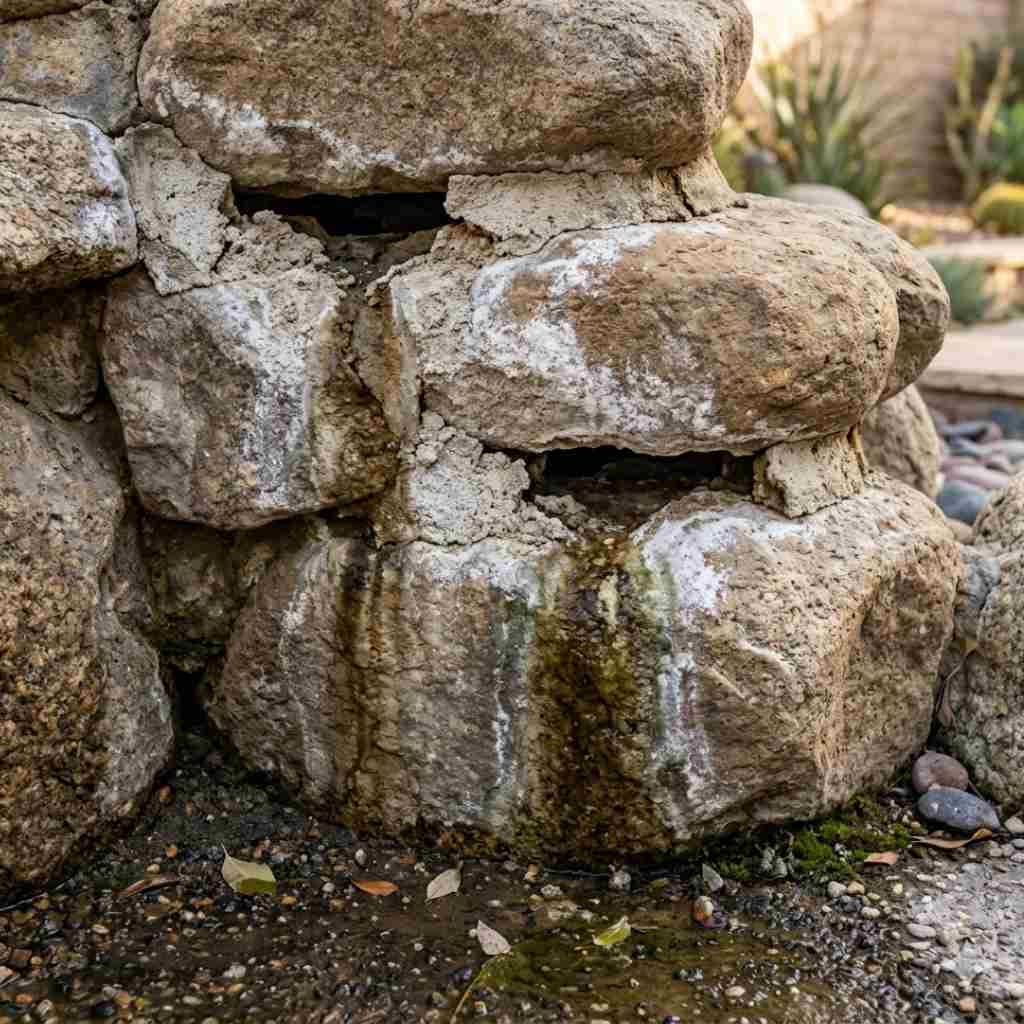

Mortar and Joint Deterioration
Mortar holds natural rock and boulder waterfalls together and seals the joints between stones to direct water flow. Over time, mortar absorbs water, expands, contracts, and eventually cracks or crumbles out of the joints. Once a joint opens, water migrates behind the rock face instead of flowing over it. The visible symptom is usually a drop in water level in the pond below the falls, sometimes as little as a quarter inch per day, which homeowners often mistake for evaporation. On commercial and HOA waterfalls, mortar deterioration tends to advance faster because these systems run longer daily cycles, sometimes 12 to 16 hours, which means more water passing through weakened joints every day.
Liner Tears and Punctures
Liner-based waterfalls use EPDM or PVC membrane underneath the rock structure to contain water flow. Liners fail from root intrusion, sharp rock edges shifting under load, rodent damage, or UV exposure where the liner is not fully covered by rock or gravel. A liner tear at the base of a waterfall spillway can lose several inches of pond water overnight. Reaching the damaged area often requires removing rock layers above the tear, which means the repair scope depends on where in the waterfall structure the puncture occurred. Residential waterfalls built with 45-mil EPDM are more vulnerable to root puncture than commercial installations that typically spec 60-mil or heavier membrane.
Pump Failure and Flow Loss
The pump is the mechanical center of a waterfall system. When it fails, water stops moving. Pump failures show up as reduced flow before they show up as total failure. A pump drawing higher amperage than its rated specification is working harder than it should, usually because the impeller is clogged, the intake is restricted, or the pump is undersized for the head height it has to push water to reach the top of the falls. Residential koi pond waterfalls typically run submersible pumps in the 3,000 to 5,000 GPH range. Commercial and estate waterfalls with vertical rises above six feet often require external centrifugal pumps rated at 8,000 GPH or higher, and those units involve dedicated pump vaults, check valves, and sometimes three-phase electrical connections. A failed centrifugal pump on a commercial water feature is a different repair than swapping a submersible in a backyard pond.
Structural Shifting and Settling
Waterfalls are heavy. A natural rock waterfall with a six-foot vertical rise can put several thousand pounds of load on the soil beneath it. When the soil settles, compacts unevenly, or shifts from seasonal moisture changes, rocks move. Even a half inch of displacement at the base can open gaps between stones higher in the structure, redirect water behind the rock face, and create new leak paths that did not exist when the waterfall was built. Waterfalls built on fill soil or near retaining walls are the most common candidates for settling-related failure. In hillside installations, which are common across Orange County and the Inland Empire, erosion beneath the waterfall footer can undermine the entire structure over several seasons.
Plumbing Leaks
The plumbing that connects the pump to the top of the waterfall is under constant pressure when the system runs. PVC joints, flex pipe connections, and threaded fittings can develop leaks from thermal expansion cycling, ground movement, or joint adhesive failure. A plumbing leak underground or behind the waterfall structure is harder to detect than a visible mortar crack because the water loss happens out of sight. The symptom is the same as a liner tear or mortar failure: the pond level drops. The difference is that plumbing leaks lose water at a consistent rate whether the pump is running or not, while mortar and liner leaks only lose water when the waterfall is actively flowing. That distinction is one of the first diagnostic checks in any waterfall assessment. On estate and commercial properties with longer plumbing runs, sometimes 40 to 60 feet from pump vault to spillway, there are more joints and more potential failure points along the line.

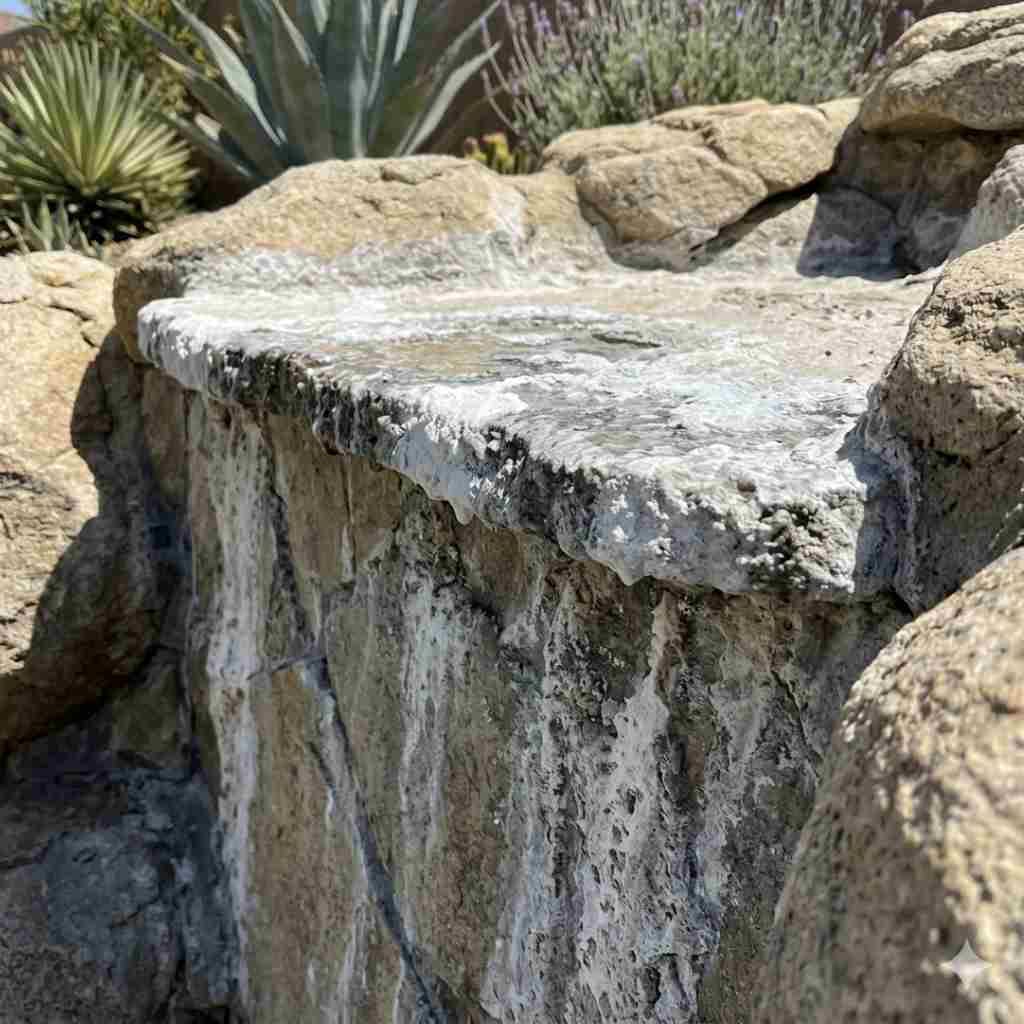

Calcium and Mineral Buildup
Hard water deposits calcium carbonate on rock surfaces, inside plumbing fittings, and on pump impellers over time. In areas with high mineral content in the municipal water supply, which includes much of Orange County and the Inland Empire, calcium scaling can restrict flow through return lines, reduce effective pump output, and coat spillway edges so that water no longer sheets cleanly across the rock face. The visual symptom is white or grey-white crusting on the rock surface and around the waterfall lip. The mechanical symptom is reduced flow volume at the spillway even though the pump is running at full capacity. Calcium buildup is not structural damage, but it masks early signs of mortar cracking and makes leak detection more difficult. HOA and commercial properties with fountain-style waterfalls that recirculate treated municipal water see this problem more frequently than residential ponds fed by well water or rainwater collection.
Why Waterfalls in California Fail Differently
Waterfall systems in California face a combination of climate, seismic, and water chemistry conditions that accelerate failure patterns in ways most other regions do not produce. The failure patterns described above all accelerate under these regional factors, and repair scoping has to account for them or the fix does not hold.
Waterfall systems in California face a combination of climate, seismic, and water chemistry conditions that accelerate failure patterns in ways most other regions do not produce. The failure patterns described above all accelerate under these regional factors, and repair scoping has to account for them or the fix does not hold.
Thermal Cycling and Mortar Stress
Interior valleys and inland areas across Orange County, the Inland Empire, and Riverside County regularly see summer daytime temperatures above 100°F followed by nighttime drops of 30 to 40 degrees. That daily expansion and contraction cycle puts repetitive stress on mortar joints, concrete surfaces, and PVC plumbing fittings. A mortar joint that might last 15 years in a stable climate can begin cracking in 7 to 10 years under this kind of thermal load. Coastal installations from Huntington Beach through Laguna Beach experience less extreme heat cycling, but salt air introduces a different corrosion factor on exposed metal fittings, pump housings, and reinforcement hardware.
Seismic Movement and Structural Displacement
California is seismically active territory. Even minor seismic events that register below the threshold most homeowners notice can shift the soil beneath a waterfall foundation enough to displace rocks, open mortar joints, and crack rigid plumbing connections. Waterfalls built on hillsides or slopes, which describes a large share of residential installations in Mission Viejo, Anaheim Hills, Laguna Niguel, and the Pasadena foothills, are more vulnerable because gravity amplifies even small lateral soil shifts downslope. A waterfall that developed a leak within a year or two of construction, with no obvious impact damage or material defect, often traces back to soil movement that was too subtle to see but enough to break a seal.
Hard Water and Mineral Scaling by Region
Municipal water hardness varies significantly across California service areas. Orange County water districts report hardness levels ranging from 200 to over 400 parts per million depending on the source blend in a given year. Inland Empire and Riverside County water tends to run even harder. At those concentrations, calcium carbonate deposits accumulate inside return lines, coat pump impellers, and build up on spillway edges faster than most homeowners expect. A waterfall fed by municipal water in Anaheim or Corona will develop visible calcium scaling on exposed rock surfaces within 18 to 24 months without treatment. Estate and commercial properties that top off large-volume systems with municipal water on a regular schedule concentrate minerals faster than smaller residential ponds that lose and replace less volume.
UV Exposure and Liner Degradation
Southern California averages over 280 sunny days per year. EPDM and PVC liner material degrades under prolonged UV exposure, losing elasticity and becoming brittle. Any section of liner that is not fully covered by rock, gravel, or water is exposed to UV breakdown. Exposed liner degradation is most common at the top of the waterfall where the liner wraps over the spillway edge and at the sides where rock coverage thins out. Residential installations where the original builder left liner edges exposed above the waterline are the most frequent candidates for UV-related liner failure. On large estate waterfalls with wide spillways, the risk increases because there is more surface area where coverage gaps can develop over time.
Drought, Water Restrictions, and System Stress
California’s recurring drought cycles create a specific operational problem for waterfall systems. When water restrictions limit how often homeowners can top off pond levels, the system runs with lower water volume. Lower volume means the pump works harder to maintain flow, water temperature rises faster, evaporation concentrates minerals more quickly, and biological load per gallon increases. A waterfall that ran fine at full pond capacity can start showing pump strain, accelerated calcium buildup, and degraded water quality within a single drought season. Commercial and HOA properties face additional pressure because some water districts impose tiered penalty rates on high-volume water use, which creates an incentive to defer topping off shared water features until visible problems develop.
Santa Ana Winds and Debris Loading
The Santa Ana wind events that sweep through Southern California from late summer through early winter carry fine dust, ash, leaf debris, and particulate matter that deposits directly into open waterfall and pond systems. A single sustained Santa Ana event can load enough debris into a skimmer and pump intake to reduce flow noticeably within 24 hours. Pump strainer baskets fill faster, skimmer capacity is overwhelmed, and debris that bypasses the skimmer settles in the pond basin and decomposes, increasing nutrient load and accelerating algae growth. Waterfalls in open-exposure locations without mature tree canopy or windbreak fencing, which is common in newer developments across Irvine, Corona, and Temecula, take the heaviest debris loading during these events.

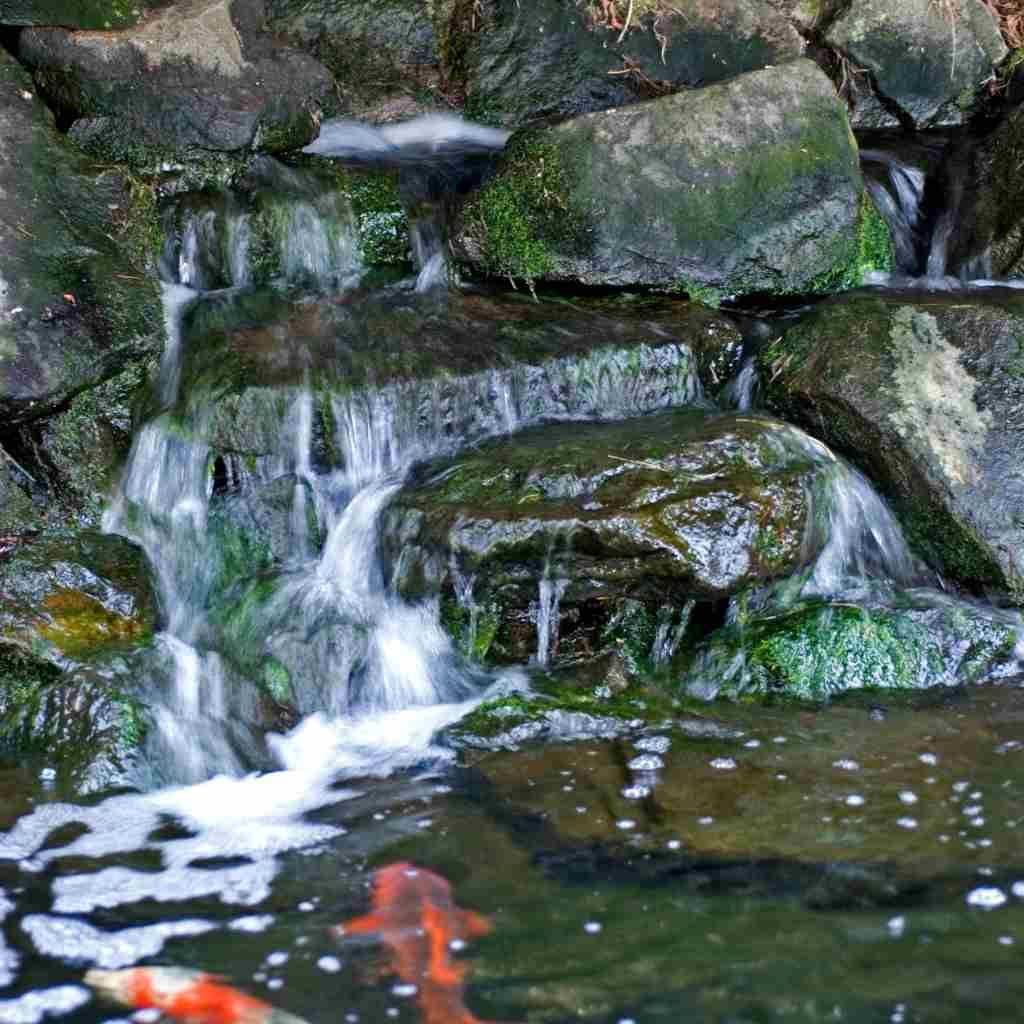

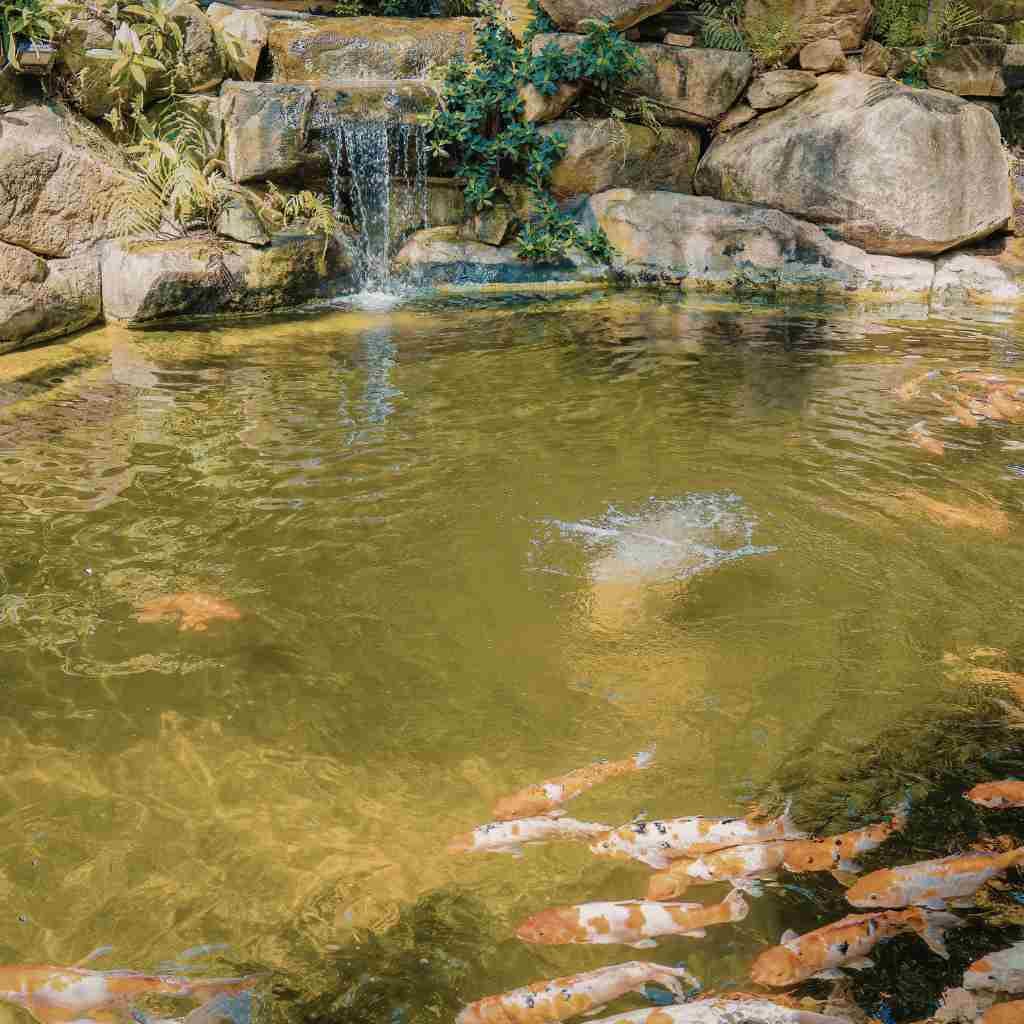

Waterfall Types We Repair
Each construction type uses different materials, different structural methods, and different water delivery systems. The repair approach that works on a liner-based pondless waterfall will not work on a gunite pool waterfall, and a fix applied to a natural rock cascade does not transfer to an artificial rock feature.
Liner-Based Pondless Waterfalls
Pondless waterfalls recirculate water from a buried basin through a pump and back to the top of a rock cascade, with no exposed pond. The liner in these systems sits beneath the rock structure and lines the underground basin. Liner failures in pondless systems are harder to detect than in pond waterfalls because there is no visible water level to monitor. The first sign is usually a pump cycling on and off as the basin water level drops below the intake, or the waterfall flow weakening over several days without an obvious cause. Accessing a liner tear in a pondless system requires removing the rock structure above the damaged area, making the repair, and then rebuilding the rock arrangement. Residential pondless waterfalls are popular across Southern California because of their lower maintenance requirements, which also means they are often left running unattended for longer periods, giving small leaks more time to develop before anyone notices.
Concrete and Gunite Waterfalls
Concrete and gunite waterfalls are poured or sprayed as a monolithic structure without individual stones or a liner membrane. These features are common on commercial properties, HOA common areas, and pool-integrated installations where durability and uniform appearance are priorities. The failure mode is different from natural rock: instead of mortar joints opening between stones, the concrete itself cracks from thermal expansion, soil settlement, or seismic stress. Cracks in a concrete waterfall can be structural or cosmetic, and the distinction matters for repair scoping. A hairline surface crack that does not penetrate the full wall thickness can be sealed with an elastomeric coating. A crack that extends through the concrete requires excavation behind the feature, structural patching, and waterproofing from both sides to prevent water migration through the wall.
Pool-Integrated Waterfalls
Pool waterfalls are built as part of the pool structure and share the pool's water supply, filtration, and chemical treatment system. Repair on a pool waterfall involves factors that do not apply to standalone pond waterfalls. The waterfall's plumbing connects to the pool's circulation system, so a leak in the waterfall plumbing can draw air into the pool pump, create suction-side problems, and affect pool water chemistry. Calcium scaling on pool waterfalls is typically more aggressive than on pond waterfalls because pool water is chemically treated and maintained at higher calcium hardness levels to protect the pool plaster. Any structural repair on a pool waterfall has to account for the pool's water level, which means the pool may need to be partially drained to access the waterfall base, and the repair materials must be compatible with chlorinated or salt-treated water.
Multi-Tier Cascading Systems
Large-scale cascading waterfalls with multiple tiers, drops, and collection pools are most common on private estates, resort properties, and high-end residential landscapes. These systems involve longer plumbing runs, higher-capacity pumps, dedicated pump vaults with external centrifugal equipment, and sometimes multiple pumps serving different tiers independently. A failure on one tier can affect the tiers below it. A leak at the second tier spillway reduces water volume reaching the third and fourth tiers, changing flow appearance and sound before the pond level drop becomes obvious. Diagnosing problems on multi-tier systems requires testing each tier independently to isolate which section of the waterfall is losing water or flow. Repair access is more complex because upper tiers may require scaffolding or equipment access that single-tier residential waterfalls do not.
How We Diagnose Waterfall Problems
A waterfall assessment is not a visual inspection with a verbal estimate. It is a structured diagnostic sequence designed to identify every active failure point, distinguish between symptoms and root causes, and determine the full repair scope before any work begins. Skipping steps in this sequence is how repairs fail within six months. The technician fixed what was visible but missed what was driving the problem.
Step 1: Visual Inspection of the Waterfall Structure
The assessment starts with the pump off and the waterfall dry. The technician inspects every visible mortar joint, rock seam, concrete surface, and liner edge from the top spillway to the base where the waterfall meets the pond or basin. Cracks, displaced rocks, exposed liner material, mineral deposits along unexpected flow paths, and wet soil around the waterfall perimeter are all documented before anything else happens. On multi-tier systems, each tier is inspected independently because a crack on the second tier can mask a separate failure on the fourth tier that only shows symptoms when both are running. Visual inspection also covers the condition of any exposed plumbing, electrical connections, and equipment housings.
Step 2: Water Loss Rate Measurement
After the visual inspection, the system is filled to its normal operating level and the pump is turned on. The technician marks the water level at the pond or basin and measures the drop over a controlled period, typically two to four hours depending on system size. This measurement establishes the actual water loss rate and separates real leaks from normal evaporation. In Southern California, evaporation alone can account for a quarter inch to a half inch of water loss per day during summer months. Any loss rate above that baseline during a controlled test confirms an active leak somewhere in the system. On estate and commercial systems with large water volumes, the test period may need to run longer because a small leak in a 5,000-gallon system produces a slower measurable level change than the same size leak in a 500-gallon residential pond.
Step 3: Pump-On vs. Pump-Off Leak Isolation
This step determines whether the leak is in the waterfall structure or in the plumbing. The technician runs the system with the pump on and records the water loss rate, then shuts the pump off and records the loss rate again over an equal time period. If the water level drops only when the pump is running, the leak is in the waterfall itself, in the mortar joints, liner, or rock structure where water flows during operation. If the water level drops at the same rate whether the pump is running or not, the leak is in the plumbing, below grade or behind the waterfall where water sits under static pressure at all times. This single test eliminates half the possible failure locations before any disassembly begins.
Step 4: Flow Rate and Pump Performance Testing
The technician measures the actual flow rate at the spillway and compares it to the pump’s rated output at the installed head height. A pump rated at 4,000 GPH that is only delivering 2,500 GPH at the spillway indicates a problem somewhere between the pump and the top of the waterfall. The cause could be a partially clogged impeller, a restricted intake, calcium buildup narrowing the return line, a failing check valve, or a plumbing leak that is diverting water before it reaches the spillway. On systems with external pumps on a pad or in a vault, the technician also checks amperage draw against the manufacturer’s rated specification. A pump pulling higher amps than rated is working against a restriction. A pump pulling lower amps than rated may have a failing motor or a broken impeller. Submersible pumps require pulling the unit to test amperage, which is typically deferred to the repair phase if other diagnostic steps have already confirmed the pump as the failure source. For commercial and estate systems with external centrifugal pumps in dedicated pump vaults, this step includes checking the pump vault for standing water, inspecting the check valve and gate valve operation, and verifying that the electrical supply matches the equipment requirements.
Step 5: Plumbing Pressure Test
If the pump-on/pump-off test in Step 3 indicates a plumbing leak, the technician isolates the return line and pressurizes it to confirm the leak location. On residential systems with short plumbing runs of 10 to 15 feet, the leak is often at a single joint or fitting and can be located by visual inspection of the pressurized line. On estate and commercial properties where the plumbing runs 40 to 60 feet or more from the pump vault to the spillway, pressure testing is the only reliable method because the line is buried and passes through soil that may show no surface evidence of a leak. The test identifies which section of the plumbing run is losing pressure, narrowing the excavation area and preventing unnecessary digging across the full run.
Step 6: Structural Joint Integrity Assessment
On natural rock and concrete waterfalls, the technician tests mortar joints and concrete surfaces for integrity beyond what the visual inspection reveals. Mortar that looks intact on the surface can be soft or hollow behind the face. Probing joints with a pick tool identifies deterioration that has not yet cracked through to the surface but will fail within the next one to two seasons. Concrete surfaces are checked for delamination, where the surface layer separates from the structural layer beneath it, creating a void that traps water and causes efflorescence on the back side of the structure or undermines the waterproofing membrane from within. This step determines whether the waterfall needs targeted repointing of specific failed joints or comprehensive mortar replacement across the full structure.
Step 7: Downstream Impact Evaluation
The final step assesses what the waterfall failure has done to the connected pond or basin system. A chronic leak that has been losing water for weeks or months has consequences beyond the waterfall itself. Lower water volume concentrates minerals, stresses fish and aquatic plants, exposes pump intakes to air, and forces the homeowner to top off the system more frequently, which introduces fresh mineral load and resets the water chemistry cycle. On systems with koi or other livestock, the technician evaluates whether the water quality has degraded to a level that requires treatment alongside the waterfall repair. For HOA and commercial properties, this step also includes documenting the current condition for property management records, which is often required before repair work can be approved and scheduled through the association’s maintenance authorization process.
Waterfall Repair Services
The diagnostic assessment in the previous section determines what repair the waterfall actually needs. Every repair listed below follows from a specific diagnostic finding. We do not sell repair packages. We scope the work to match what the assessment reveals.
Leak Detection and Sealing
Leak repair starts with confirming the leak source through the pump-on/pump-off isolation test and, where necessary, plumbing pressure testing. Once the source is confirmed, the repair method depends on the material. Mortar joint leaks are repaired by removing the failed mortar, cleaning the joint to bare stone, and repointing with a hydraulic cement or polymer-modified mortar matched to the original mix profile. Liner leaks are patched using EPDM or PVC patch material bonded with manufacturer-specified adhesive, with the patch extending a minimum of three inches beyond the tear edge in every direction to prevent peel-back under water flow. PVC plumbing leaks at joints or fittings are cut out and replaced with new fittings and solvent-welded connections. Flex pipe connections that have pulled apart from ground movement are replaced with rigid PVC where the soil conditions allow, or re-secured with stainless steel band clamps where flex is required for expansion tolerance. Every leak repair is tested under full operating pressure before the waterfall is returned to service.
Pump Repair and Replacement
Pump repair covers two categories: mechanical restoration of the existing pump and full replacement when restoration is not viable. Impeller cleaning, seal replacement, and intake screen clearing can restore a pump that is underperforming but mechanically sound. When the motor windings have degraded, the impeller is cracked or corroded, or the pump casing has developed internal leaks, replacement is the correct path. Replacement is not a one-for-one swap. The technician verifies that the replacement pump is correctly sized for the system’s actual head height and desired flow rate, not the head height the original installer may have calculated incorrectly. Residential submersible replacements in the 3,000 to 5,000 GPH range are typically completed in a single visit. Commercial and estate systems running external centrifugal pumps at 8,000 GPH or higher require verifying electrical panel capacity, check valve and gate valve compatibility, and pump vault clearances before ordering the replacement unit. On HOA properties, pump replacement proposals often require written documentation for board review before the work can be authorized.
Flow Restoration and Plumbing Reconfiguration
Flow problems that are not caused by pump failure trace back to the plumbing between the pump and the spillway. Calcium-restricted return lines, undersized pipe from the original installation, too many 90-degree fittings creating excessive friction loss, or a check valve stuck partially closed can all reduce spillway flow below the level needed for the waterfall to look and sound the way it was designed to. Flow restoration involves identifying the restriction through flow rate measurement at multiple points in the system and then removing the restriction. In some cases that means descaling or replacing a section of return line. In others it means replumbing a section to reduce fitting count or increase pipe diameter. Each 90-degree fitting in a 2-inch return line adds the friction equivalent of approximately 8 feet of straight pipe. A return line with four unnecessary 90-degree bends is operating as if it were 32 feet longer than it actually is. Replumbing to eliminate even two of those fittings can produce a measurable flow increase at the spillway without changing the pump.
Structural Rock Resetting and Reinforcement
When rocks have shifted from soil settling, seismic movement, or root pressure, the waterfall structure needs physical repositioning before any surface repair can hold. Resetting involves lifting displaced rocks, re-establishing the original grade and alignment, and re-mortaring the stones into position with reinforced joints. On waterfalls where the footer or base has settled unevenly, the underlying soil may need to be compacted or stabilized before the rocks are reset, otherwise the same settling pattern repeats and the new mortar fails within a few seasons. Artificial rock waterfalls with corroded internal steel require a different approach. If the rebar and lathe framework has deteriorated to the point where the gunite shell is no longer structurally supported, surface patching will not hold. The corroded sections need to be cut out, new reinforcement installed, and the gunite reapplied and re-textured to match the surrounding surface. Estate waterfalls with large-scale rock structures sometimes require coordination with the property’s landscape architect to ensure that resetting the stones preserves the original design intent while correcting the structural failure.
Surface Restoration
Surface restoration covers the visible finish of the waterfall after structural and mechanical repairs are complete. On natural rock waterfalls, this means cleaning mineral deposits and algae staining from stone surfaces, re-coloring mortar joints to match the surrounding rock, and applying a waterproof sealant to repointed areas. On artificial rock waterfalls, surface restoration involves re-texturing patched areas to match the existing rock pattern, re-coloring the entire feature if the original finish has faded from UV exposure, and applying a waterproof coating to seal the surface against future water penetration. Surface restoration is not cosmetic work performed independently. It is the final phase of a structural or mechanical repair, applied after the underlying problem has been resolved. Restoring the surface appearance without fixing the cause of the damage results in a waterfall that looks repaired but continues to fail underneath.
Equipment Upgrades
Some repairs reveal that the original equipment was undersized, inefficient, or poorly matched to the system from the beginning. A pump that was marginal when installed ten years ago may have been adequate at the time but cannot keep up with calcium buildup in the return line, increased biological load in the pond, or an addition to the waterfall structure that increased the head height. Equipment upgrades are scoped as part of the repair when the diagnostic assessment shows that replacing the failed component with the same specification will recreate the same failure. Upgrades may include stepping up to a higher-capacity pump, adding a check valve to reduce pump workload on startup, installing a UV clarifier on the return line, or replacing an undersized return line with larger-diameter pipe to reduce friction loss. On commercial and estate systems, equipment upgrades sometimes require electrical panel modifications to support higher-draw equipment, which involves coordination with a licensed electrician and may require a permit depending on the local jurisdiction.
Other Services We offer
Pond Maintenance Service
As Southern California’s leading aquatic maintenance service, Koi Pros delivers custom pond care, pond cleaning, and pond restoration for residential and commercial clients since 1985.
Pond Maintenance Service
As Southern California’s leading aquatic maintenance service, Koi Pros delivers custom pond care, pond cleaning, and pond restoration for residential and commercial clients since 1985.
Pond Maintenance Service
As Southern California’s leading aquatic maintenance service, Koi Pros delivers custom pond care, pond cleaning, and pond restoration for residential and commercial clients since 1985.
Pond Maintenance Service
As Southern California’s leading aquatic maintenance service, Koi Pros delivers custom pond care, pond cleaning, and pond restoration for residential and commercial clients since 1985.
Repair or Rebuild — How to Know Which One You Need
Not every waterfall problem is a repair problem. Some waterfalls have accumulated enough structural damage, equipment failure, or original construction defects that repairing individual components will not produce a system that holds. Knowing where that line is before committing to a repair scope prevents the most common outcome of a bad scoping decision: a fix that fails within a year because the underlying system was too far gone.
When Repair Is the Right Path
Repair is viable when the failure is isolated and the surrounding structure, plumbing, and equipment are still sound. A single mortar joint failure on an otherwise solid natural rock waterfall is a repair. A liner tear at one identifiable point with no secondary damage is a repair. A pump that has reached the end of its service life but sits in a well-built system with good plumbing and a stable foundation is a component replacement, not a rebuild. The defining characteristic of a repairable waterfall is that the failure has a boundary. The damage stops at a specific point and the system on either side of that point is still functioning correctly.
Repair is also the right path when the waterfall was well built originally and the failure resulted from normal wear, environmental stress, or age rather than from a design or construction defect. A ten-year-old mortar joint that cracked from thermal cycling in the Inland Empire failed because of California conditions, not because of poor workmanship. That joint can be repointed and the rest of the structure will continue to perform.
When Rebuild Is the Better Investment
Rebuild becomes the right call when failures are systemic rather than isolated. Multiple mortar joints failing simultaneously across different sections of the waterfall usually indicates that the original mortar mix was wrong, the joints were too thin, or the foundation has shifted enough to stress the entire structure. Patching individual joints in that scenario is temporary work. The unpatched joints will fail within one to two seasons, and the cycle repeats.
Waterfalls with original construction defects are the most common rebuild candidates. Artificial rock waterfalls where the rebar and lathe framework has corroded through multiple sections cannot be structurally restored by patching the gunite surface. The internal support is gone and no amount of surface repair replaces it. Liner-based waterfalls where the original builder used 20-mil or 30-mil liner instead of the 45-mil minimum, or where the liner was installed without proper underlay protection, will continue tearing regardless of how many patches are applied. Plumbing systems built with undersized pipe, excessive fittings, or improper joint adhesive will continue leaking at new failure points after each repair.
The other rebuild trigger is cumulative repair cost. A waterfall that has required three or more separate repair interventions within a five-year period is sending a clear signal that the system has multiple underlying weaknesses. At that point, the total spent on repairs may approach or exceed the cost of a properly engineered rebuild that eliminates the root causes permanently.
How the Decision Differs by Property Type
Residential homeowners typically make the repair-or-rebuild decision based on the current condition of the waterfall and the cost comparison between continued repair and a one-time rebuild investment. The decision timeline is usually weeks, limited by scheduling and budget availability.
Commercial and HOA properties operate under different constraints. Budget cycle timing determines when capital expenditure for a rebuild can be approved, which means a waterfall that needs a rebuild in March may receive interim repairs to maintain appearance through the fiscal year while the rebuild is budgeted for the following cycle. HOA waterfall projects require board approval, which introduces review periods, competitive bid requirements, and documentation of the current condition along with the proposed scope. On commercial properties where the waterfall sits adjacent to pedestrian pathways or common areas, the surrounding hardscape may need to meet ADA accessibility standards, and a rebuild scope that modifies the waterfall footprint or grading can trigger compliance obligations on the adjacent surfaces that a repair scope would not.
Estate properties with large-scale waterfalls face a different consideration. A rebuild on a custom-designed estate waterfall often involves the original landscape architect or a new designer to ensure the replacement preserves the property’s design intent. The structural rebuild may be straightforward, but matching the aesthetic of a feature that was designed as a focal point of a high-end landscape adds a design coordination layer that standard residential and commercial rebuilds do not require.
What Koi Pros Recommends and Why
The diagnostic assessment determines where the waterfall sits on the repair-to-rebuild spectrum. We do not default to rebuild because the scope is larger. We do not default to repair because the price is lower. The assessment findings dictate the recommendation.
If the assessment shows isolated failures in a structurally sound system, we recommend targeted repair and explain exactly what is being repaired, why it failed, and what the expected service life of the repair is. If the assessment shows systemic failure, original construction defects, or a repair history that indicates ongoing weakness, we recommend rebuild and explain what a properly engineered replacement would address that continued repair cannot. Both recommendations are documented in writing with the assessment findings that support them.
Waterfall Repair Questions California Homeowners Ask.
Evaporation in Southern California accounts for roughly a quarter inch to a half inch of water loss per day during summer months, depending on surface area, sun exposure, and wind. Any loss beyond that rate indicates an active leak. The simplest initial test is to mark the water level at the pond or basin, run the waterfall normally for four to six hours, and measure the drop. Then shut the pump off and measure the water level change over the same time period with the waterfall not running. If the level drops only when the pump is on, the leak is in the waterfall structure. If it drops at the same rate with the pump off, the leak is in the plumbing. Loss beyond normal evaporation rates in either condition confirms a leak that requires professional diagnosis.
It depends on where the failure is located. Mortar joint repairs on the upper waterfall structure, pump replacements, and plumbing repairs on the return line can often be completed without draining the pond. Liner repairs at the base of the waterfall where it meets the pond, structural rock resetting that extends below the waterline, and any repair that requires access to the pond-side waterfall footer will require at least a partial drain. If the pond contains koi or other fish, the technician will assess whether the fish need to be temporarily relocated to a holding tank during the repair.
Single-component repairs like pump replacement, isolated mortar repointing, or a liner patch on an accessible area are typically completed in one visit, usually four to six hours. Multi-component repairs that involve plumbing reconfiguration, structural rock resetting, or mortar replacement across a larger section of the waterfall may require two to three days depending on cure times for mortar and sealant. Commercial and estate waterfalls with larger structures and longer plumbing runs generally take longer than residential systems. The assessment report includes an estimated timeline for the specific repair scope before any work begins.
The assessment is a seven-step diagnostic sequence. It starts with a visual inspection of the waterfall structure with the pump off, followed by water loss rate measurement under operating conditions, a pump-on versus pump-off leak isolation test, flow rate and pump performance testing, plumbing pressure testing if a plumbing leak is indicated, structural joint integrity probing on mortar and concrete surfaces, and a downstream impact evaluation of the connected pond or basin system. The assessment produces a written report documenting every finding, the identified failure points, the recommended repair scope, and the estimated cost and timeline. On HOA and commercial properties, this report serves as the documentation needed for board review or property management approval.
Most standard homeowner’s insurance policies do not cover waterfall or water feature repair because ponds and waterfalls are classified as landscape features rather than structural components of the home. Some policies may cover damage caused by a waterfall failure, such as water damage to an adjacent structure or foundation, but not the repair of the waterfall itself. The property coverage section of the policy will specify whether landscape features are included or excluded. Koi Pros provides detailed assessment documentation that can be submitted with an insurance claim if the policy includes applicable coverage.
A repaired waterfall should be visually checked by the owner weekly for the first month after the repair, watching for any return of water loss, flow reduction, or visible moisture around the repaired area. After the first month, a monthly visual check is sufficient for most residential systems. A professional inspection once per year is recommended to catch early signs of mortar softening, liner wear, pump performance decline, or calcium buildup before they develop into repair-level problems. Commercial and HOA waterfalls that run longer daily cycles benefit from professional inspection twice per year, typically before and after the high-heat summer season when thermal stress and evaporation rates are highest.
Schedule Your Waterfall Repair Assessment
Whether your waterfall has a visible leak, reduced flow, pump failure, or structural damage you have not been able to diagnose, the next step is the same. An on-site assessment identifies the problem, determines the repair scope, and gives you a written report with findings, cost, and timeline before any work begins.
